4S-8S Smart 12V 24V 3S 6S 7S Active Balance 300A Support Parallel modules LiFePo4 Li-Ion LTO Battery PCM(Heater and Paralle)
Product details
| Management number | 215129086 | Release Date | 2026/04/12 | List Price | $106.60 | Model Number | 215129086 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

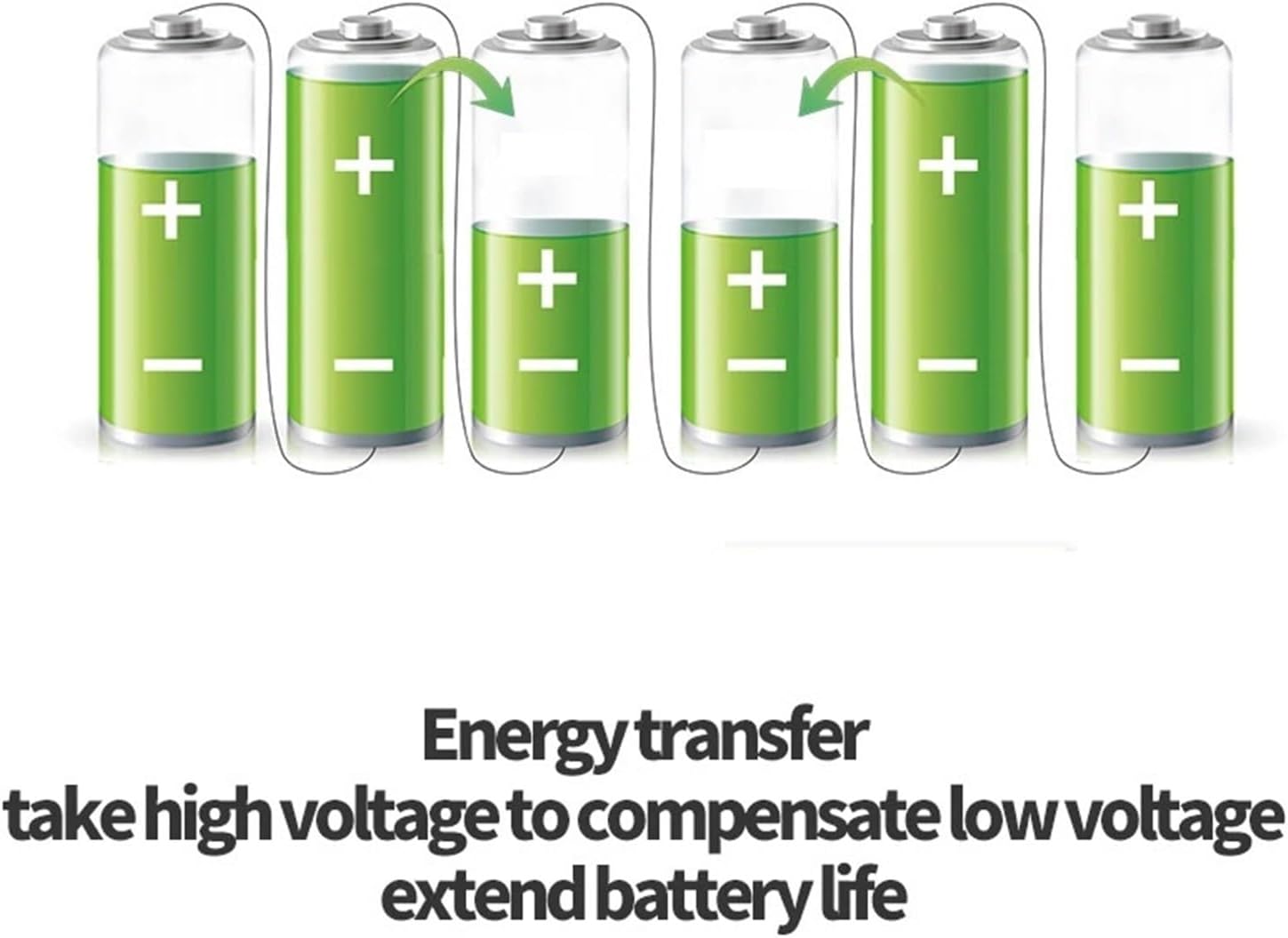

Triple string number :3s~8sLithium iron string number :4s~8sNumber of Titanic acid strings :7s~8sBalancing mode: Active balancingBalance current :2AInternal resistance of main loop: 0.3mPrecharge function: SupportedContinuous discharge current :300AMaximum discharge current: 450A(10S)Overcurrent protection (adjustable) :10 ~ 300ADisplay port: SupportedHeating function Support: OptionalBattery parallel function: Used with parallel modulesOutlet mode: same portUnit voltage range :1~5VVoltage acquisition accuracy :±3mVOvercharge protection voltage: 1.2-4.35V adjustableOvercharge release voltage: 1.2-4.35V adjustableOvercurrent release time :2 ~ 120S adjustableOverdischarge protection voltage: 1.2-4.35V adjustableOverdischarge recovery voltage :1.2 ~ 4.35V adjustableNumber of temperature checks :5
- Multi -Function Protection:Has a variety of protection functions, such as over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection, Downtime protection，Voltage balance, etc
- Preparation Before Installation:Before installing the BMS protective board, it is necessary to match the voltage, capacity, and internal resistance;Otherwise the battery pack will not be able to charge
- Enhanced Safety Features: Safeguard your battery with protection against overcharging, overdischarging, overcurrent, short circuits, and temperature fluctuations
- Wide Application:Ideal for RV, Solar Panel, and UPS Power Supply and so on, it offers seamless integration and top performance
- After-Sales Support: If you have any questions or concerns, please contact us through your order page
| Department | unisex-adult |
|---|---|
| Item Weight | 12.3 ounces |
| Manufacturer | LDHJBNAC |
| Number of pieces | 1 |
| Assembly required | No |
| Item model number | LDHJBNAC |
| Batteries required | No |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
